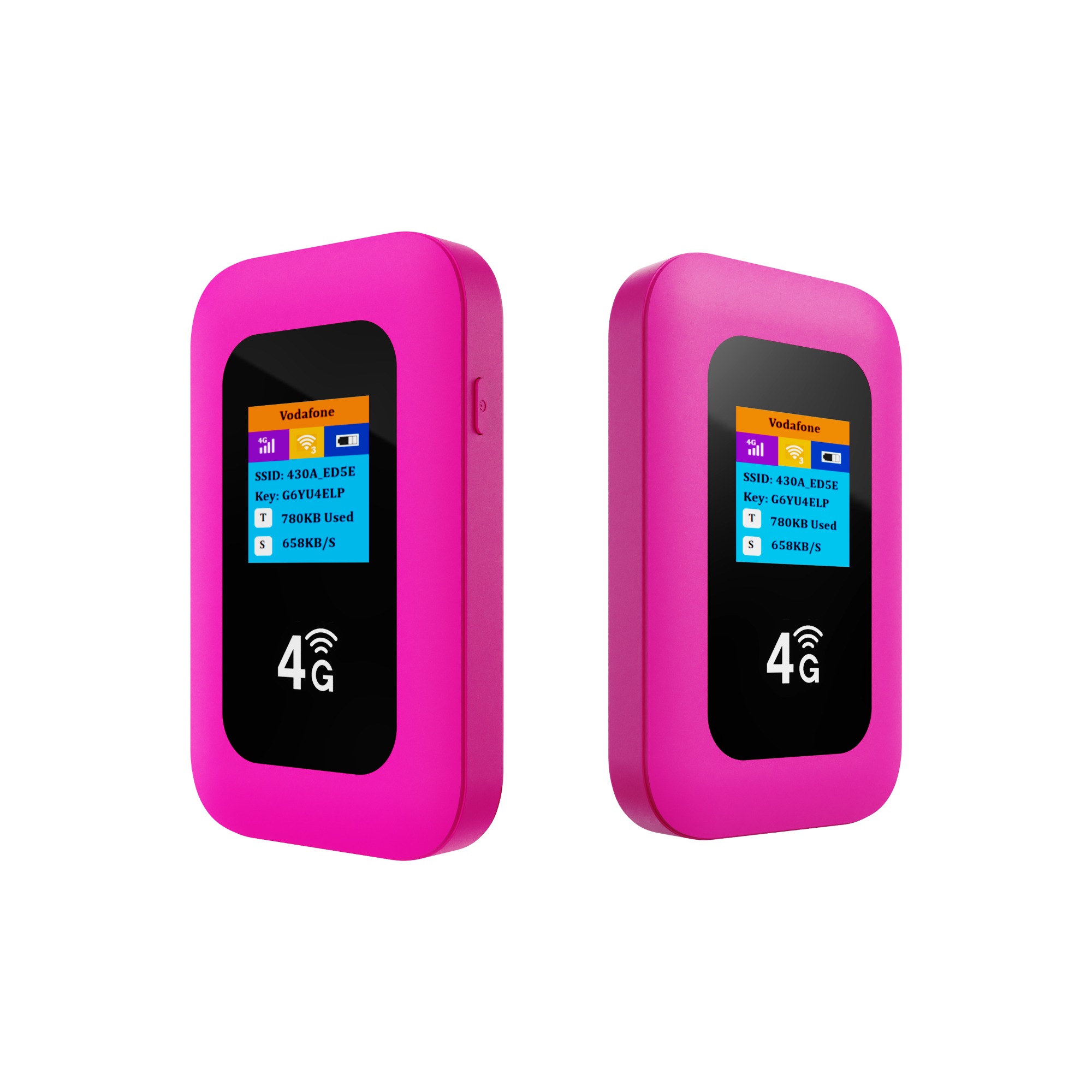

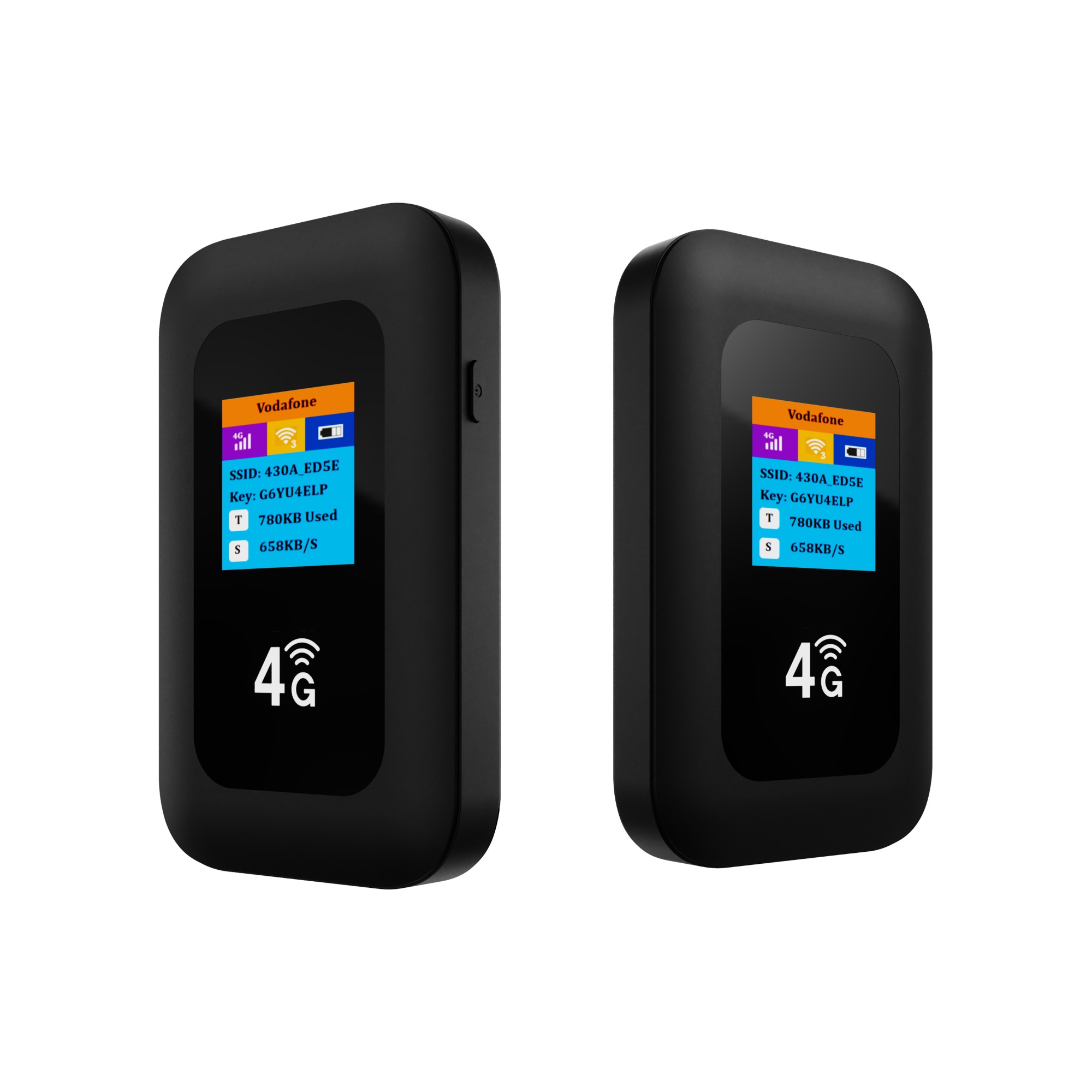

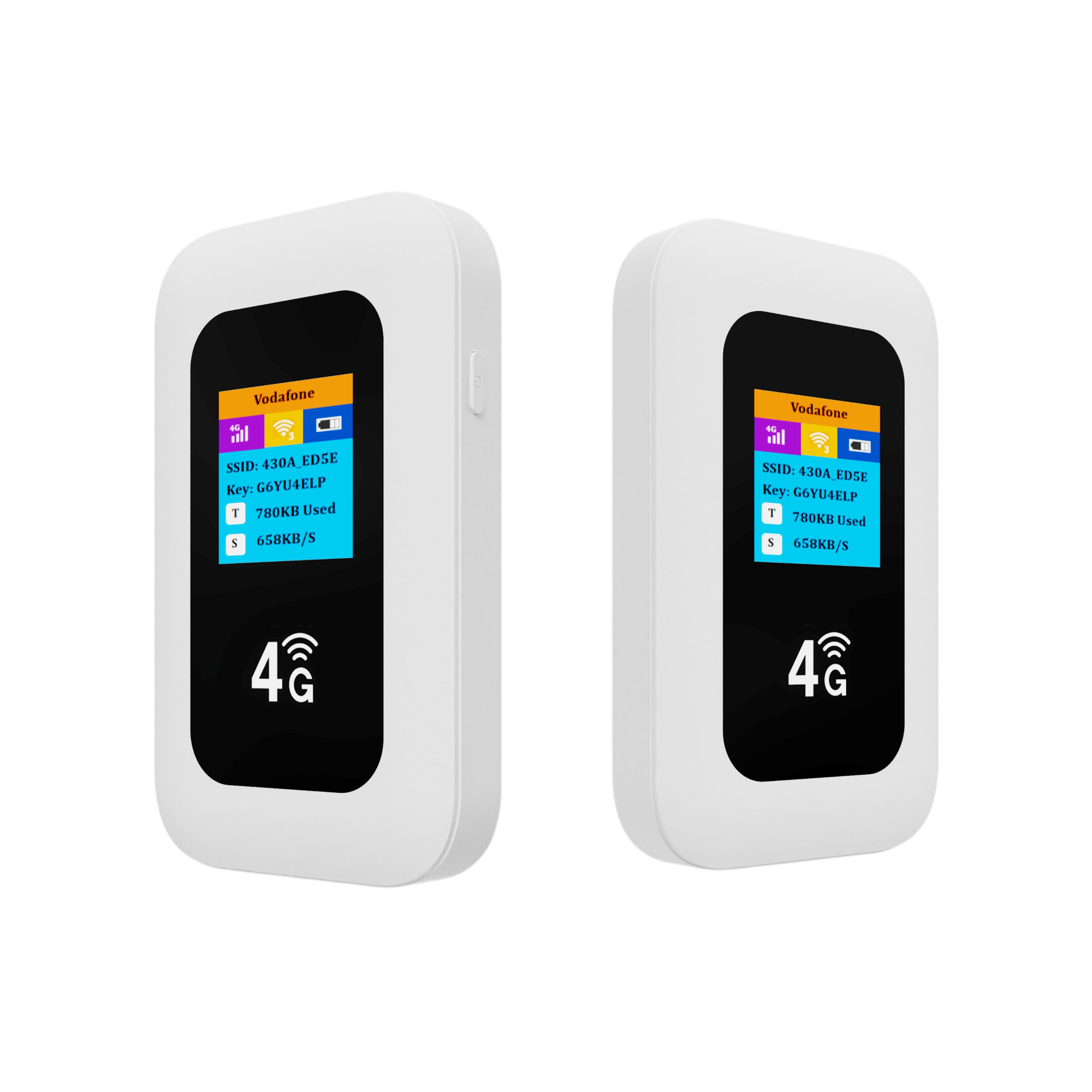

| Basic information | Model | HL-430A |
| Factor | Mobile WIFI Hotspot | |
| Dimension | 98.4*59.1*16.7mm | |
| Weight | about 110g (with Battery) | |
| Color | Optional | |
| Air interface | Technical Standard | Compatible with WCDMA, FDD-LTE, TDD-LTE IEEE 802.11 b/g/n |
| Network frequency | LTE B2 B3 B4 B7 B8 B12 B17 B20 B25 B41 B66, WCDMA: B2/B8 |
|
| WIFI | WiFi6 2.4G, IEEE 802.11 b/g/n/ax | |
| Performance | Maximum Data Throughput | LTE CAT 4 |
| FDD-LTE 150Mbps/50Mbps | ||
| UMTS:Up to 21 Mbps DL and 5.76 Mbps UL | ||
| WiFi Data rates up to 286.8Mbps@TX and 229.4Mbps@RX with 20/40MHz bandwidth | ||
| Hardware | Receive Diversity | Support Receive Diversity |
| MIMO | Support LTE MIMO 2x2 | |
| Modem Chipset | ASR1803S | |
| WiFi Chipset | AIC8800DW | |
| Memory | 256Mb RAM + 128Mb ROM | |
| USB charging | above 5V/1A | |
| Power | <5W | |
| USIM/SIM | Nano SIM Card slot 1×eSIM optional (5×6mm) vSIM optional |
|
| Battery | Li-ion Battery 3000mAh | |
| Charging time | 3-3.5hours | |
| Working time | around 8 hours (depend on network) | |
| Standby time | >60 hrs | |
| LCD | 1.44'' Color LCD Display | |
| USB | Type C, Charging & Internet | |
| Antenna | Built-in, 4G Main/Sub and WiFi | |
| Buttons | POWER | |
| ESD | ESD Protection circuit; Contact±4KV, Air±8KV | |
| Software | UI | Web-UI |
| System | RTOS | |
| OS Supported | Upto WIN11, MAC OS, Android | |
| Web browser supported | Windows IE, EDGE Google Chrome (Win), Firefox, etc., | |
| Languages | Default English | |
| FOTA | Support | |
| WIFI Mode | AP | |
| WIFI Security | WEP/WPA/WPA2/WPA3 SAE Personal, MFP | |
| SMS | Support | |
| USSD | Support | |
| APN Setting | Support | |
| IPv4 & IPv6 | Support | |
| Data Statistics | Support | |
| SIM Lock | Support | |
| Environment | Operating Temperature | Normal: -10°C to +55°C |
| Storage Temperature | -20° C to +70° C | |
| Humidity | 5%~ 95% | |
| Package including | Giftbox+Plastic Tray | |
| User manual | ||
| MiFi | ||
| Battery | ||
| USB Cable | ||
