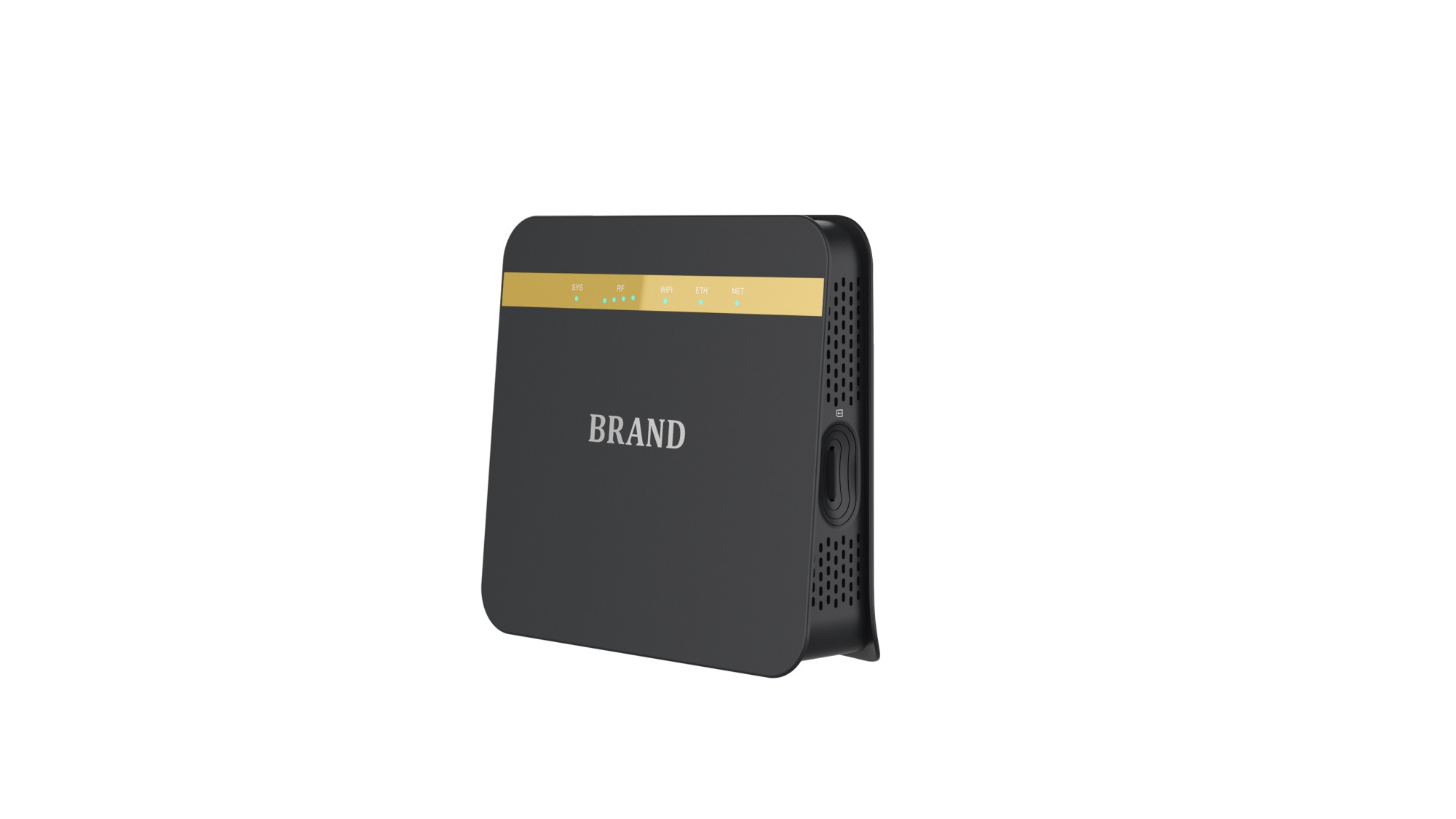

| HL-570Z 4G CAT4 CPE Specification | ||
| Category | Feature & specification | Description |
| Basical Information | Model Name | HL-570Z |
| Form Factor | CPE | |
| Dimension | 156*145*38mm | |
| Color | Black | |
| Air Interface | Technical Standard | Compatible with FDD/TDD-LTE, UMTS 802.11 b/g/n/ax, WIFI6 |
| Frequency | 4G LTE FDD: B1/3/5/7/8/20/28, TDD: B38/B40/B41 WCDMA: B1/5/8 |
|
| WIFI | 2.4GHz, 802.11 b/g/n/ax, WIFI6 | |
| Performance | Maximum Data Throughput | FDD-LTE (CAT 4): Max 150Mbps(DL)/50Mbps(UL) TDD-LTE (CAT 4): Max 130Mbps(DL)/30Mbps(UL) |
| Transmit Power： | FDD-LTE 23±2dBm; TDD-LTE 23±2dBm; |
|
| Hardware | Receive Diversity | Support Receive Diversity |
| MIMO | Support DL 2x2 MIMO | |
| BB Chipset | ZX297520V3E | |
| Memory | Flash 1Gb RAM 64MBytes | |
| power consumption | <12W | |
| Power Voltage | DC12V/1A | |
| USIM/SIM | 2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot |
|
| LED | Power Indication LED, WAN Signal Strength WiFi/WPS Indication LED , WAN/LAN, Status LED, Internet Status LED |
|
| USB | USB 2.0 | |
| Antenna | External LTE Antenna Internal WiFi Antenna |
|
| Buttons | POWER，Reset, WPS | |
| Ethernet | 1WAN/LAN, 10BaseT/100Base automatic adaptive port | |
| RJ11 | RJ11x1 for option (VoLTE) | |
| Reset | Pinhole | |
| Battery | 4000mAh lithium battery for option | |
| ESD | ESD Protection circuit；Contact±8KV、Air±10KV | |
| SW Update | TR069 &FOTA Update | |
| WIFI Mode | AP mode only, AP+STA is Optional | |
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK; | |
| SMS & Phone Book | Support | |
| Software | USSD | Support |
| USB Function | Default no USB port, can be customized | |
| Voice | VoLTE | |
| IPv4 | Support IPv4 | |
| IPv6 | Support IPv6 | |
| IPv4v6 | Support IPv4v6 | |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | |
| Data Statistics | Support | |
| SIM Lock | Support | |
| WAN Fallback to ETH | Automatically | |
| WeUI | Support | |
| Language | English by default, can be customized. | |
| HTTP | Support | |
| Certification | Depends on customization, cost related | |
| Environment | Operating Temperature | Normal:-10°C to +65°C; |
| Storage Temperature | -20° C to +85° C | |
| Humidity | 5%~ 95% | |
