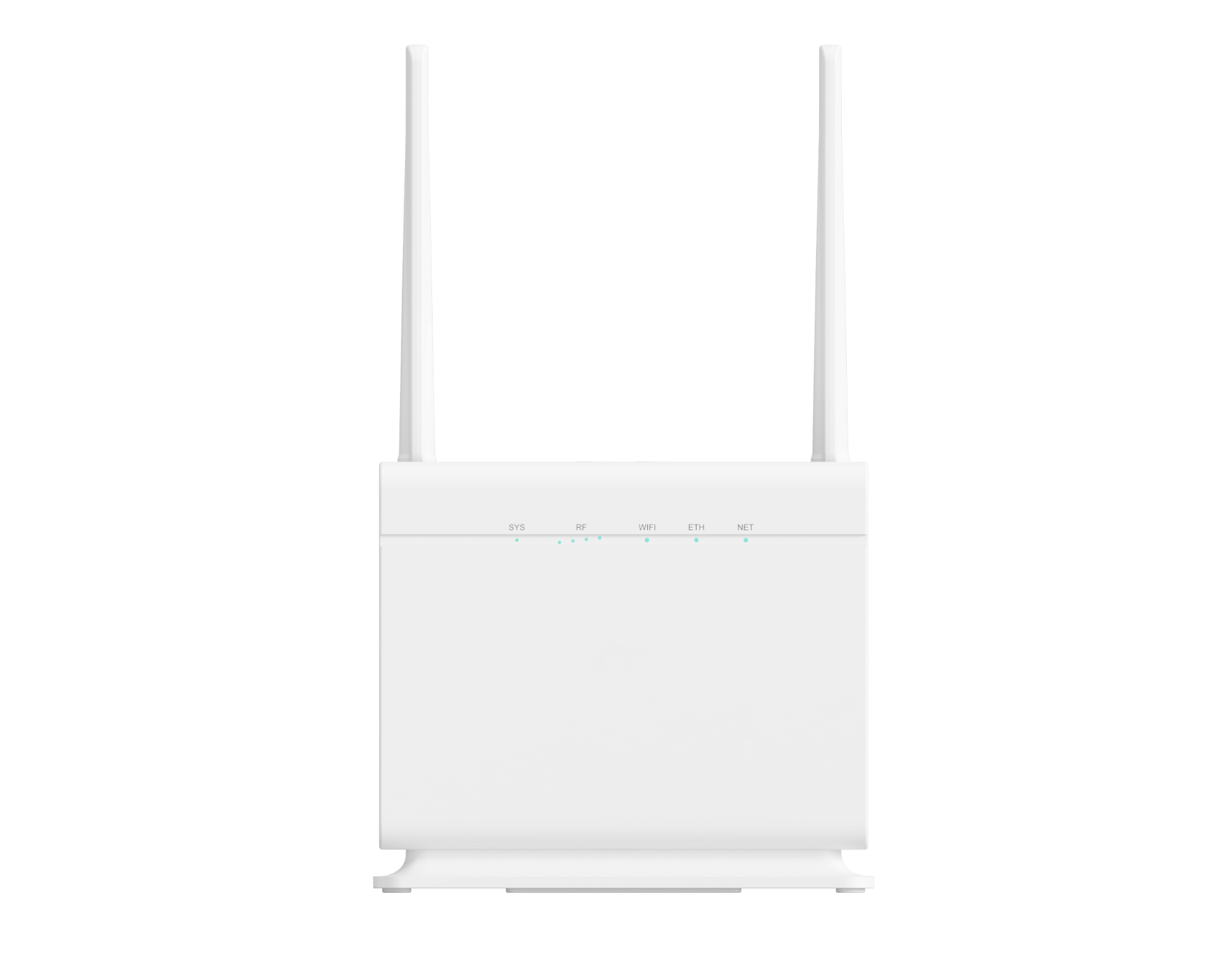

OEM universal wireless WIFI6 802.11ax 4G modem with sim card slot. ZTE solution 4G CAT4 150Mbps CPE woth 2pcs external antennas. High quality 4000mAh 4G router supports SIM lock or unlock.

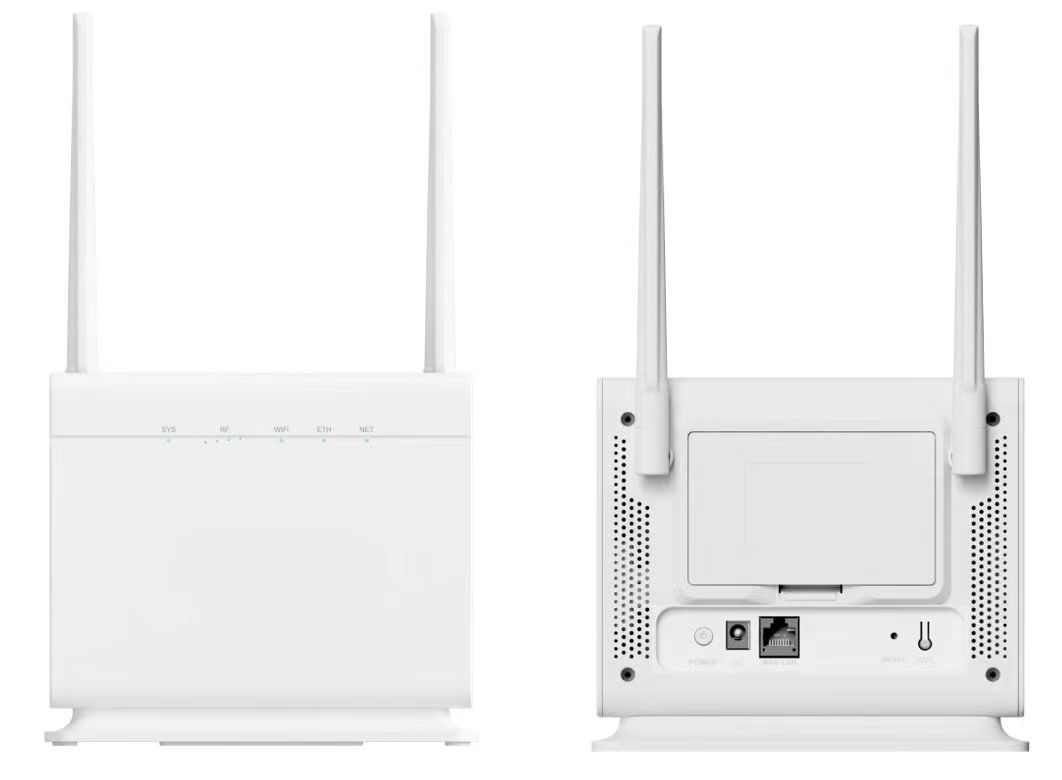

| HL-580Z 4G CAT4 CPE Specification | |||
| Category | Feature & specification | Description | Customer Comments |
| Basical Information | Model Name | HL-580Z | |
| Form Factor | CPE | ||
| Dimension | 156*125*38mm | ||
| Weight | 600g | ||
| Color | White | ||
| Air Interface | Technical Standard | Compatible with FDD/TDD-LTE, UMTS, EDGE/GPRS/GSM 802.11 b/g/n/ax |
|
| Frequency | LTE :1/3/5/7/8/28(20)/40 UMTS: 1/8 |
Frequencies can be Customized | |
| WIFI | 2.4GHz, WIFI 2*2 MIMO，802.11 b/g/n/ax WiFi6 | ||
| Performance | Maximum Data Throughput | FDD-LTE (CAT 4): Max 150Mbps(DL)/50Mbps(UL) TDD-LTE (CAT 4): Max 130Mbps(DL)/35Mbps(UL) |
|
| Transmit Power： | FDD-LTE 23±2.7dBm; TDD-LTE 23±2.7dBm; |
||
| Hardware | Receive Diversity | Support Receive Diversity | |
| MIMO | Support DL 2x2 MIMO | ||
| BB Chipset | ZX297520V3 | ||
| WiFi Chipset | AIC8800DW (WiFi6) | ||
| Memory | Flash: 128Mb RAM: 256Mb | ||
| power consumption | <12W | ||
| Power Voltage | DC12V/1A | ||
| USIM/SIM | 2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot |
||
| LED | Power Indication LED，RF Signal Strength， WiFi/WPS Indication LED， WAN/LAN Status LED，Internet Status LED, | ||
| USB | USB 2.0 | ||
| Antenna | External LTE Antenna (Unremovable) External WiFi Antenna (Unremovable) |
||
| Buttons | POWER，Reset, WPS | ||
| Ethernet | 1WAN/LAN, 10BaseT/100Base automatic adaptive port | ||
| Reset | Pinhole | ||
| ESD | ESD Protection circuit；Contact±8KV、Air±10KV | ||
| Battery | Optional | can support 4000mAh battery | |
| Software | SW Update | TR069 & FOTA Update | |
| WIFI Mode | AP mode only, AP+STA is Optional | ||
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK; | ||
| SMS & Phone Book | Support | ||
| USSD | Support | ||
| USB Function | For debug only | ||
| IPv4 | Support IPv4 | ||
| IPv6 | Support IPv6 | ||
| IPv4v6 | Support IPv4v6 | ||
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | ||
| Data Statistics | Support | ||
| SIM Lock | Support | ||
| WeUI | Support | ||
| Language | English by default, can be customized. | ||
| HTTP | Support | ||
| Certification | Depends on customization, cost related | ||
| Environment | Operating Temperature | Normal:-10°C to +65°C; | |
| Storage Temperature | -20° C to +85° C | ||
| Humidity | 5%~ 95% | ||
