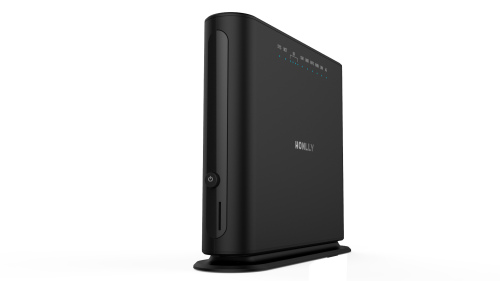

HL-650A LTE CPE

Chipset: ASR 1828
LTE Router
CAT6: 300Mbps
2.4GHz&5GHz Dual Band WiFi Router
4xRJ45 Ethernet ports
1~2xRJ11 Voice ports (Optional)
Support TR069 & FOTA
Support 4000Ah battery (Optional)
Description
Description

HL-650A 300Mbps throughout CAT6 4G wireless router provides high speed mobility experience.
ASR 1828 Chipset based HL-650A LTE broadband with 4 pcs Ethernet ports.
ASR dual band 4G home CPE with 1 pc VOLTE&CS RJ11.


Category Feature & specification Description
Basical Information Model Name HL-650A
Form Factor 4G CAT6 Indoor CPE
Dimension(Diameter * Depth) 176mm*153mm*44mm
Weight 315g
Color Black/white
Air Interface 4G Technical Standard 3GPP Release10, DL CAT6
Operating Frequency EA:
FDD:B1/B3/B5/B7/B8/B20/28/B32
TDD:B38/40/41/42/43
WCDMA:B1/B5/B8
DL CA European Bands [2CC]:
CA_1A-3A
CA_1A-5ACA_1A-7ACA_1A-8ACA_1A-20ACA_1A-28ACA_1A-40ACA_1A-41ACA_3A-3ACA_3A-5ACA_3A-7ACA_3A-8ACA_3A-20ACA_3A-28ACA_3A-38ACA_3A-40ACA_3A-41ACA_5A-7ACA_5A-40ACA_5A-41ACA_7A-7ACA_7A-8ACA_7A-20ACA_7A-28ACA_8A-40ACA_8A-41ACA_20A-32ACA_20A-38ACA_28A-40ACA_28A-41A
UL CA Not Support
Transmission mode FDD: TM2, TM3 and TM4
TDD: TM2, TM3, TM4, TM7, TM8 and TM9
QoS Standardized QCIs: QCI1 ~ QCI9
Extended QCIs: QCI128 ~ QCI254
Operating Bandwidth FDD: 5MHz, 10MHz, 15MHz, 20MHz
TDD: 10MHz, 15MHz, 20MHz
3GPP Feature TTI Bundling, SPS, RoHC, MFBI, LAA
Handover intra eNodeB/inter eNodeB / inter-Frequency
WiFi5 Technical Standard Wi-Fi5, 2.4G & 5G DBDC
IEEE 802.11a/b/g/n/ac
2.4GHz: IEEE 802.11b/g/n
5GHz: IEEE 802.11a/n/ac
Operating Frequency 2.4GHz: 2400MHz~2483.5MHz
5GHz: 5150MHz~5350MHz, 5470MHz~5850MHzNote: 5725MHZ~5850MHz, not supported by EU and UK.
Operating Bandwidth 2.4GHz: 20MHz, 20MHz/40MHz
5GHz: 20MHz, 20MHz/40MHz, 20MHz/40MHz/80MHz
Channel 2.4GHz: channel 1~13, (Didable 1-4 channel if there has B40/N40 working simultaneously)
5GHz: channel 36, 40, 44, 48, 52, 56, 60, 64,100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165
Support for Wi Fi country codes
MIMO 2.4GHz: 2*2MIMO
5GHz: 2*2MIMO
MU-MIMO not support
Encryption Mode AES, TKIP+AES
Authentication Mode None (Open), WPA2-PSK, WPA-PSK/WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE
WMM Supports
 Dual Band Steering not Supports
BFR Supports transmit beamforming (TxBF)
DFS Dynamic Frequency Selection (DFS, radar detection)
WPS WPS2.0: PBC, PIN, AP-PIN
Country Code Supports
Multi SSID 3 SSID: One SSID for 2.4G, 5G and 2.4G guest Wi Fi
EasyMesh Not supports
Performance  4G Maximum Throughput Modulation and Demodulation: DL 64QAM / UL 16QAM
CA: DL 2CC CA
CAT: CAT6
FDD Peak Rate: 300Mbit/s (DL) and 50Mbit/s (UL)
TDD (SA2) Peak Rate: 210Mbit/s (DL) and 10Mbit/s (UL)
3G Maximum Throughput DC-HSPA+ (DL/UL) 42/5.76Mbps
WiFi5 Maximum Throughput Modulation and Demodulation: 256QAM
2.4GHz  MAX 2100Mbps (40M)
5GHz  MAX 520Mbps  (80M)
hardware Memory 1Gb Nand Flash + 1Gb DDR RAM
Power AC: 100V ~ 240V, 50Hz / 60Hz
DC: 12V / 1 A
Power Consumption Maximum Power Consumption: < 13W
Typical Power Consumption: < 8W
LED  1x Power Indication LED1x RF Signal Strength 1xWiFi/WPS Indication LED WAN/LAN Status LEDInternet Status LED,
USIM/SIM 1 x USIM Card Slot (2FF, SIM card),3V SIM card and 1.8V SIM card.
support SIM/USIM/UIM,standard 6 PIN SIM card interface.
eSIM is optional
External Port 1 x GE WAN Port supporting 10/100/1000Mbit/s
3 x GE LAN Port supporting 10/100/1000Mbit/s
1 x USIM Card Slot (2FF, SIM card)
1~2x Voice Port (Optional)
1x micro usb 2.0 ( only for debug
Power Adapter:
1 x DC  power port
Button 1 x Reset Button
1 x Power Button
1 x WPS Button
Dustproof and Waterproof Specification IP20
battery 4000mAh insert lithium battery(Option)
ESD ESD Protection Circuit, Contact ±6KV, Air ±8KV
3GPP Chipset BB
ASR1828
RF
RF866S
Transmit Power [4G LTE]:
PC3: All bands 200mW (23dBm ± 2dB)
Antenna Automatic Antenna Direction Optimization
TX/RX
1T2R@all bands
EA Gain
:
700-960Mhz   0-1dbi
1710-2700Mhz   2-3dbi
3300-3800Mhz   3-4db
Receiving Sensitivity European bands:
Band1: -100dBm/5MHz, -97dBm/10MHz, -95.2dBm/15MHz, -94dBm/20MHz
Band3: -97dBm/5MHz, -94dBm/10MHz, -92.2dBm/15MHz, -91dBm/20MHz
Band5: -97.3dBm/5Mhz, -94.3dBm/10MHz
Band7: -98dBm/5MHz, -95dBm/10MHz, -93.2dBm/15MHz, -92dBm/20MHz
Band8: -96.3dBm/5MHz, -93.3dBm/10MHz
Band20: -97dBm/5MHz, -94dBm/10MHz, -91.2dBm/15MHz, -90dBm/20MHz
Band28: -98.5dBm/5MHz, -95.5dBm/10MHz, -93.7dBm/15MHz, -91dBm/20MHz
Band38: -97dBm/10MHz, -95.2dBm/15MHz, -94dBm/20MHz
Band40: -97dBm/10MHz, -95.2dBm/15MHz, -94dBm/20MHz
Band41: -92dBm/10MHz, -90.2dBm/15MHz, -89dBm/20MHz
Band42: -93dBm/10MHz, -91.2dBm/15MHz, -90dBm/20MHz
Band43: -93dBm/10MHz, -91.2dBm/15MHz, -90dBm/20MHz
WiFi Chipset RTL8192FR+QCA6174A-1
Transmit Power CE EU
2.4GHz: 2400MHz~2483.5MHz: 17dBm±3dB(EIRP)
5GHz: 5150MHz~5350MHz: 20dBm±3dB(EIRP), 5470MHz~5850MHz: 20dBm±3dB(EIRP).Note: 5725MHZ~5850MHz, not supported by EU and UK
Other region
2.4GHz
11b
20dBm
11g
16.5dBm
11n_20M_MCS7 : 16dBm
11n_40M_MCS7 : 15dBm
5GHz----TBD
11n_20M _MCS7: 19dBm
11n_40M _MCS7: 19dBm
11ac_20M_MCS9: 18dBm
11ac_40M_MCS9: 18dBm
11ac_80M_MCS9: 18dBm
Antenna 2T2R
Gain:
2.4GHz: 3dBi
5GHz: 4dBi
Receiving Sensitivity 802.11b: -76 dBm@11Mbit/s
802.11g: -65 dBm@54Mbit/s
802.11n: -61dBm@MCS7/40MHz, -64dBm@MCS7/20MHz
802.11ac: -51dBm@MCS9/80MHz, -54dBm@MCS9/40MHz, -57dBm@MCS9/20MHz
Operative System Kernel and version 802.11b: -76 dBm@11Mbit/s
802.11g: -65 dBm@54Mbit/s
802.11n: -61dBm@MCS7/40MHz, -64dBm@MCS7/20MHz
802.11ac: -51dBm@MCS9/80MHz, -54dBm@MCS9/40MHz, -57dBm@MCS9/20MHz
Software Language English
SW Update Local Update
Online Update: FoTA and TR-069
Multi-APN One APN/DNN
AAA authentication for APN/DNN: Auto, PAP, CHAP, None
PDP Type IPv4, IPv6, IPv4/IPv6 Dual Stack
MTU 600 ~ 1500bytes
LTE Frequency Lock Not support
WAN Mode Gateway Mode(NAT), IP Passthrough Mode
ETH WAN: Dynamic IP, Static IP, PPPOE.
Network Features  DHCPv4, Static DHCP, LAN IP Pools 100, LAN IP Subnet Mask is Configurable
VPN support
Firewall&Security EA:
MAC Address Filter, IP Address Filter, Domain Name Filter, Disable WAN Ping, Anti-DoS Attack;
DMZ, Port Forwarding
PIN Management PIN Protect
NAT SIP ALG, NAT
Maximum Number of Device Connection 32
Local Maintenance and Management Support Device Management, Network Configuration, Status Query
Remote Maintenance and Management TR-069, FOTA(Auto / Manul / Force FoTA)
TR-069 TR-069 Amendment 5 (include TR-111 and XMPP), TR-098 Amendment 2, TR-143 Amendment 1
Data Statistics WAN Statistics
SNTP SNTPv3, Timezone and Daylight Saving Time
WebUI Local WebUI, support HTTP or HTTPS
WebUI Account One Account
Diagnosis Ping Diagnosis,Traceroute Diagnosis, TR-143 Diagnosis
System Log Support
Backup & Restore Support
Reboot & Reset Support
Scheduled restart Support
SMS Support SMS
Voice Type/Protocol CS Voice
VoIP
VoLTE,
Support SIP2.0/IMS protocol, comply with IR.92 and 3GPP 24.229 specifications.
Codec CS Voice: AMR-NB, AMR-WB
VoLTE: AMR-NB, AMR-WB, EVS
VoIP: G.711, G.729
Basic Business Caller, Called
Emergency call: 911, 112
Supplementary Business Call holding, Call waiting, Call forwarding and Third party calling services
Certification Safety EA: CE Certification
SA: FCC Certification
HSF RoHS, REACH
Environment Operating Temperature 0°C to +45°C;
Storage Temperature Storage Temperature
'-20° C  to +70° C without battery version
'-20° C  to +60° C with battery version
Humidity 5% ~ 95%
