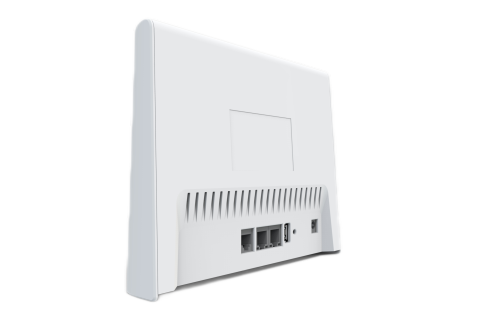

High quality 2.4GHz&5GHz dual band wireless WiFi6 router with 2pcs RJ45 Ethernet ports.
Gigbit high speed networking WiFi6 access point supports TR069, web and FOTA.
Indoor 802.11ax wireless modem supports a maximum of 64 WiFi users.
| Categoty | Item | Description |
| Hardware Specification |
Chipset | Host: MT7621 WiFi: MT7905+MT7975 |
| Flash&Ram | 1Gb&2Gb | |
| Interface | IEEE 802.11a/b/g/n/ac/ax | |
| Chipset | 1 * RJ45 WAN Port with POE 100/1000Mbps auto-sensing, auto-MDI/MDIX 1 * RJ45 LAN Port 100/1000Mbps auto-sensing, auto-MDI/MDIX |
|
| LED Indicator | Power/2.4G WIFI/5G WIFI/Internet/signal LED*4 | |
| Button | Reset, Recover | |
| Dimensions | 204mm *158mm * 42mm | |
| Weight | <250g | |
| Power Consumption | <15W | |
| Power Supply | AC 100~240V DC 24V 2.5A | |
| Temperature and humidity | Operating: -10℃~ 40℃ Storage: -20℃ ~ 70℃ Humidity: 5% ~ 95% |
|
| Software Specification | LAN | DHCP Server, Client, DNS and DNS proxy, DMZ, Multicast/Multicast Proxy, port forwarding, port mirroring |
| Device Management | TR069, Web UI, Diagnostics, Software upgrade via WEB/ TR069/FOTA, USIM PIN management and card authentication | |
| Routing Mode | Bridge Mode NAT mode Static Route Port Mirror and port forwarding ARP IPv4, IPv6 and IPV4/IPv6 Dual Stack |
|
| VPN | IPsec, PPTP, L2TPv2 and L2TPv3, VPN pass-through | |
| Security | Firewall, MAC Address Filtering, IP Address Filtering, URL Filtering, Access Control, HTTPS Login from WAN, Dos attack protection, Three level of user authority |
|
| Reliability | Watchdog for automatic recovery Auto rollback to previous version when upgrade fail |
|
| WIFI Features | Support configuration WLAN functions through Web UI, include: SSID, SSID broadcasting turn on/off, AP Isolate function, Channel, rate and mode Security mode: Open, WPA2.0 PSK, WPA1.0/WPA2.0 PSK, WEP Shared Key (four keys at most) WiFi protocol support: IEEE 802.11 b/g/n/ac/ax WiFi support max. users: 64 Support SSID broadcasting Support multi SSID Support WiFi channel self-adapt and select Support WDS |
|
| Appendix-Delivers | 1*Assembled product | 1*Ethernet cable, 1M |
| 1*24V/2.5A | 1*Quick User Guide |
