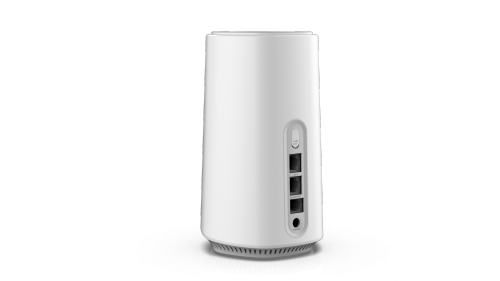

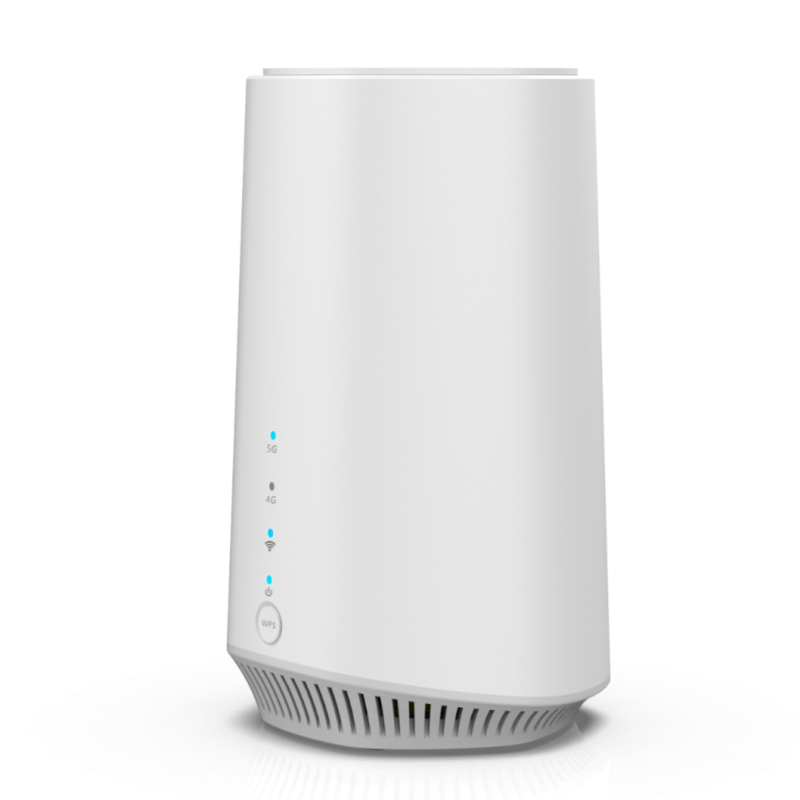

HL-830M 128 max AP access points 5G WiFi 6 CPE with 2 RJ45 Ethernet ports.
High speed 1200Mbps 5G wireless router with 2 sim card slots.
LTE dual band WiFi router with 2.4GHz&5GHz WiFi MIMO2x2.
| Essential Points | |||
| Product Name | HL-830M | ||
| Highlight | 1.AP+Modem 2.Multi-mode/Multi-band 5G 3.WIFI6 |
||
| Item | Description | Remark | |
| Key features | |||
| Platform | MTK T750+7915+7975 | AP+Modem | |
| Processors | Arm Quad-ARM Cortex A55@2GHz | ||
| Basical Information | Dimension | 186.5mm*107.1mm*107.1mm | |
| Color | White | ||
| Weight | TBD | ||
| supported mode: 5G NR/LTE FDD/TDD/DC-HSPA+/HSPA+/HSPA | 5G NR | 5G NR sub6Hz Bands: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 |
|
| DL 4*4 MIMO Bands: n1/n3/n7/n38/n40/n41/n77/n78 |
|||
| UL 2x2 MIMO Bands：n41/n77/n78 | |||
| DL/UL 256 QAM：FR1 | |||
| EN-DC Combinations (NSA) | |||
| LTE | LTE Band: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43 |
||
| DL 4*4 MIMO Bands: B1/B3/B7/B38/B40/B41/B42/B43 |
|||
| DL 2×CA | |||
| DL 3×CA | |||
| DL 4×CA | |||
| DL 5×CA | |||
| Support DL 256QAM; Support UL 256QAM | |||
| WCDMA | Bands: B1/B5/B8 |
||
supported mode: IEEE 802.11a/b/g/n/ac/ax |
General Features | Wi-Fi 2.4GHz + 5GHz | |
| Frequency Range | 2.4 ~ 2.4835GHz 4.9 ~ 5.9250GHz |
||
| WLAN Standard | 802.11a/b/g/n/ac/ax | ||
| BT Standard* | NO | ||
| WIFI MESH | support | ||
| WIFI MIMO | 2*2MIMO | ||
| WIFI BandWidth | 2.4 GHz WLAN：20M/40M; 5 GHz WLAN：20M/40M/80M | ||
| AP (Max Access Point) | 128 | ||
| Operator Mode | AP | ||
| Safe mode | WPA2-PSK； WPA3-SAE； WPA/WPA2-PSK； WPA2-PSK/WPA3-SAE | ||
| Wifi Rate（MAX） | 2.4GHz :600Mbps | ||
| 5GHz: 1200Mbps | |||
| supported mode: IEEE 802.3 1000M/100M/10M | General Features | 1 to 2 x IEEE 802.3 10/100/1000BASE-T RJ-45 Ethernet Port | |
| WAN/LAN | 1 WAN / 1 LAN | ||
| Data | |||
| 5G NR（2T4R） | NSA sub6 | DL 4.67Gbps; UL 2.5Gbps（Max） | |
| SA sub6 | DL 3.74Gbps; UL 1.46Gbps（Max） | ||
| LTE | DL 1.4Gbps, UL 211Mbps（Max） | ||
| HSPA+ | DL 42Mbps, UL 5.76Mbps（Max） | ||
| TD-SCDMA | none | ||
| CDMA | none | ||
| EDGE | none | none | |
| GPRS | none | none | |
| HW Interfaces | |||
| Management Interface | Console Port USB 2.0 | Type C out of CPE （test only） | |
| USIM1 Standard Nano SIM card interface | x1, support 1.8 / 3V, with detection | ||
| USIM2 | x1, support 1.8 / 3V, with detection | Esim not support | |
| Power supply | DC: 12V, 1.5A | Power Adaptor - Input of 110/220V, 60 Hz | |
| RF | Built-in Antenna | WIFI 2.4G&5.8G: 2*2MIMO Sub6 5G: 4*4 MIMO |
|
| External Antenna | Not Support | ||
| PWR KEY | Turn on/off the CPE | Hold&PUSH | |
| RESET | Reset to factory mode | Pull up internally， Micro Switch | |
| WPS | Support WPS function | Pull up internally， Micro Switch | |

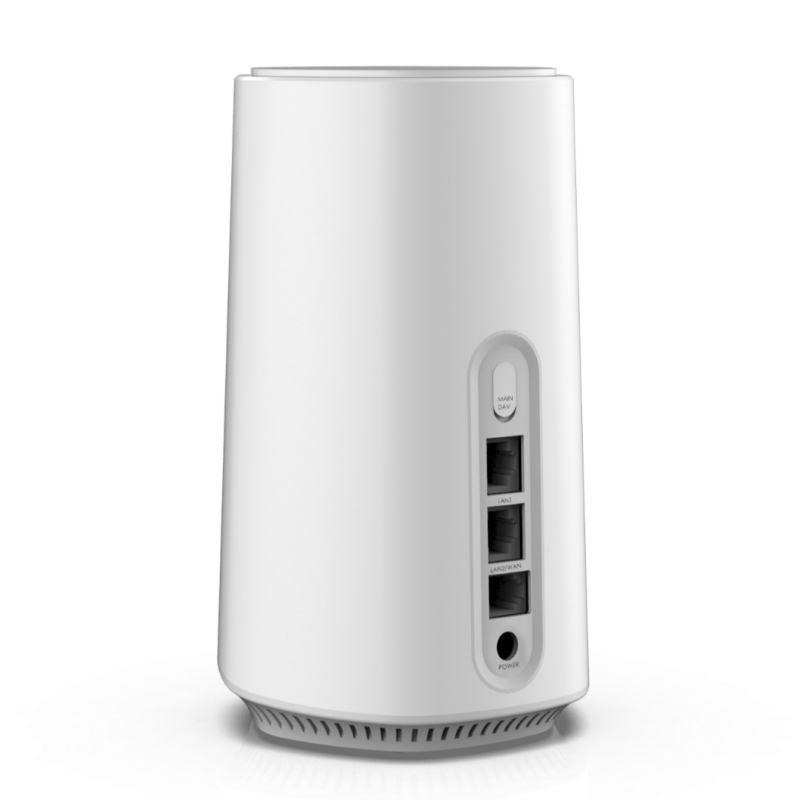

| RJ45 *1 | WAN | IEEE 802.3 1000M/100M/10M | |
| RJ45 *1 | LAN | IEEE 802.3 1000M/100M/10M | |

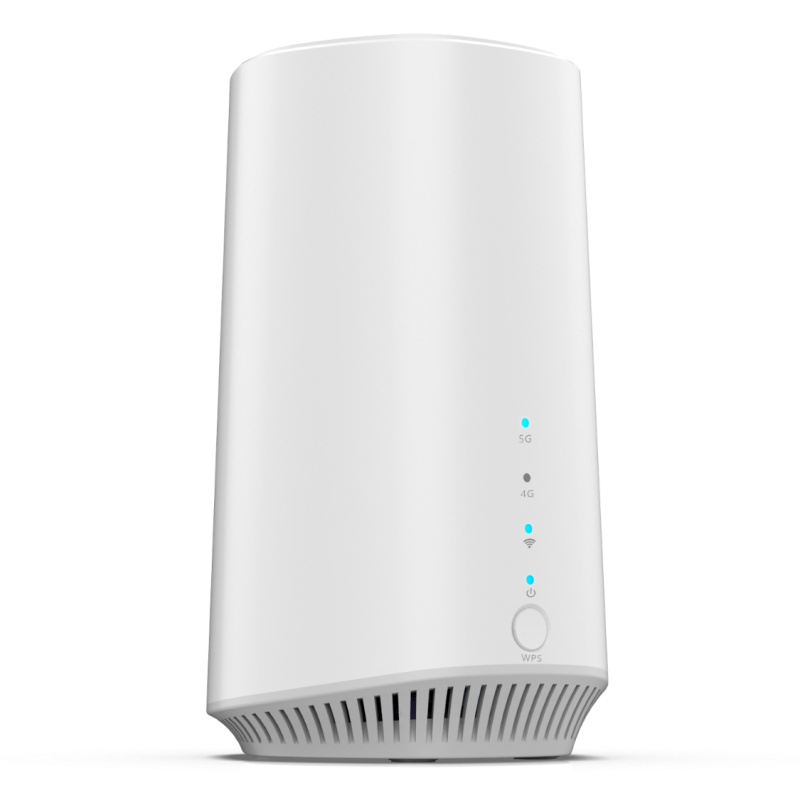

| LED Indicators | 4G signal | support | |
| 5G signal | support | ||
| WiFi signal | support | ||
| WPS | support | ||
| Slic | 1 way Slic | RJ11 | |
| Software | ||
| Title | Network | 3G/4G/5G |
| Operator Name Display | Support | |
| Signal Strength Display | Support | |
| SIM Card Status | Support | |
| New SMS Notification | Support | |
| Main UI | WiFi Status-ssid | Support |
| 4G/5G networking status and dialing | Support | |
| Traffic status statistics and reminders | Support | |
| Wwan Setup | Manually search, select the Network | Support |
| APN Auto match, create, add and delete | Support | |
| PIN management: activate/deactivate PIN, PIN lock, changing PIN, unblocking by using the PUK. | Support | |
| Network Setup | IPV4/V6 DHCP Setup | Support |
| device list | Support | |
| WAN/LAN setup，WAN setup support ppoe/dhcp/static ip | Support | |
| WLAN Setup | 2.4G/5G multi-frequency in one | Support |
| 2.4G/5G advanced configuration, support ssid, encryption method, key, channel, ssid hiding. | WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 | |
| MAC address filtering support | Support | |
| WPS configuration, support PIN/virtual PBC configuration mode. | Support | |
| Software Upgrades | Firmware upgrade | Support |
| SW version No. Display | Support | |
| service | L2TP/PPTP | NA |
| UPNP | Support | |
| system settings | Login password modification | Support |
| Equipment Info | IMEI,SN,Version | |
| Reset | Webui support | |
| Reboot | Support | |
| Configuration data import/export | Support | |
| firewall setup | DMZ | Support |
| IP FILTER | Support | |
| NAT Rules | Support | |
| Port Forward | Support | |
| SMS | Writing/Sending/Receiving | Support |
| Sending/Receiving extra-long messages | Support(70 CHARACTERS) | |
| Storage: Up to 300 messages can be saved in the internal memory of the device | Support(70 CHARACTERS) | |
| Slic | Voice | VOLTE, CSFB |
