| Item | Description | |

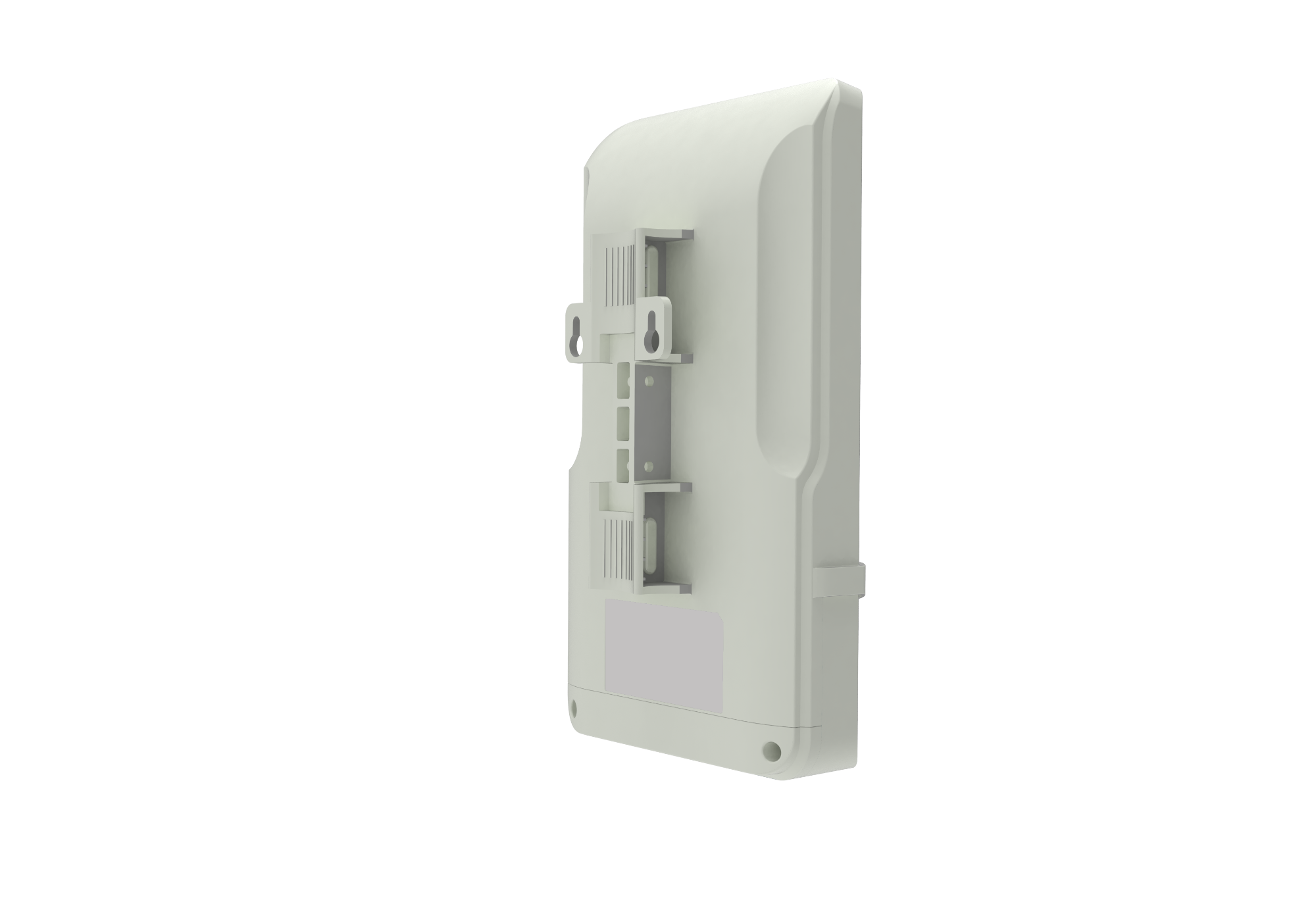

| Product Name | HL-860U 5G ODU | |
| Celluar Feature | 3G/4G/5G data connectivity |
It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA,HSUPA and WCDMA networks. |
| 3G/4G/5G Data rates |
5G SA DL 4.67Gbps, UL 1.25Gbps 5G NSA DL 5.47Gbps, UL 1.35Gbps LTE DL 1.6Gbps, UL 200Mbps |
|
| Standards |
3GPP Release 16 |
|
| Band |
5G NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71 /n75/n76/n77/n78 5G SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71 /n75/n76/n77/n78 LTE-FDD B1/B3/B5/B7/B8/B20/B28/B32/B71 LTE-TDD B38/B40/B41/B42/B43 |
|
| Data Transfer |
5G SA DL 4.67Gbps, UL 1.25Gbps 5G NSA DL 5.47Gbps, UL 1.35Gbps LTE DL 1.6Gbps, UL 200Mbps |
|
| MIMO |
DL 4 X 4, UL 2 X 2 |
|
| HPUE |
29dBm |
|
| Tx Power |
23dBm |
|
| Modulation |
UL MAX QAM256, DL MAX QAM256 |
|
| Receive Sensitivity |
Compliance with 3GPP standard |
|
| SIM card feature | 1.8V/3.0V USIM 2FF | |
| Hardware feature | CPU |
Unisoc V620 Four Core 2.0GHz |

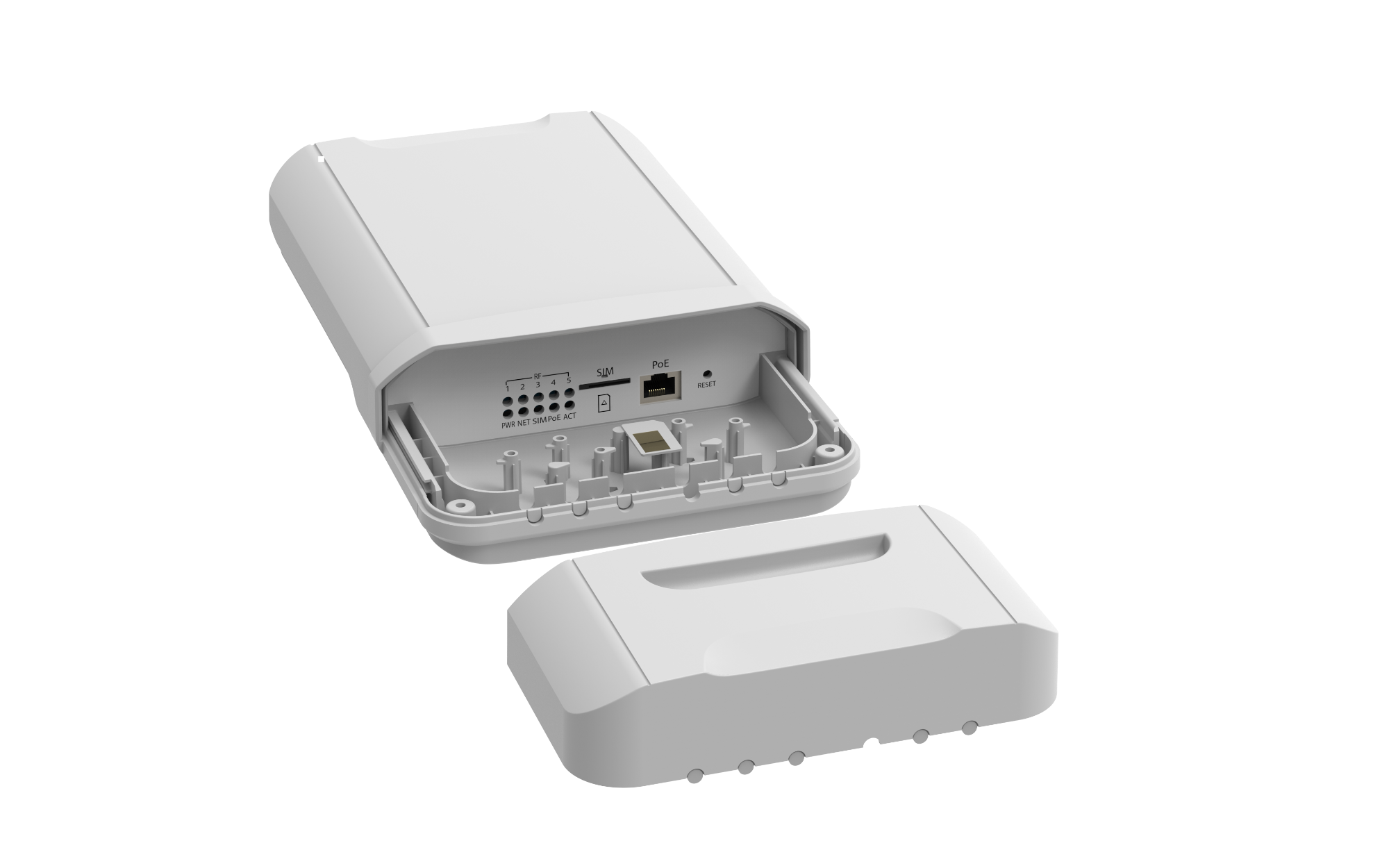

| Hardware interface | 1*RJ45 10/100/1000/2500M ETH Port | |
| Key button | Reset | |
| protection level | Ethernet port, Contact electric shock, +/-4KV, air discharge: +/-8KV. | |
| LED status indicator | PWR, SYS, MOD, SIM, ETH, RF (5LEDs) | |
| Standard Power | POE power supply input. DC 24V/1A | |
| Temperature | Operating Temperature -40 ºC ~+55ºC | |
| Environment humidty | 90% MAX non-condensing | |
| Ingress Protection | IP65 | |

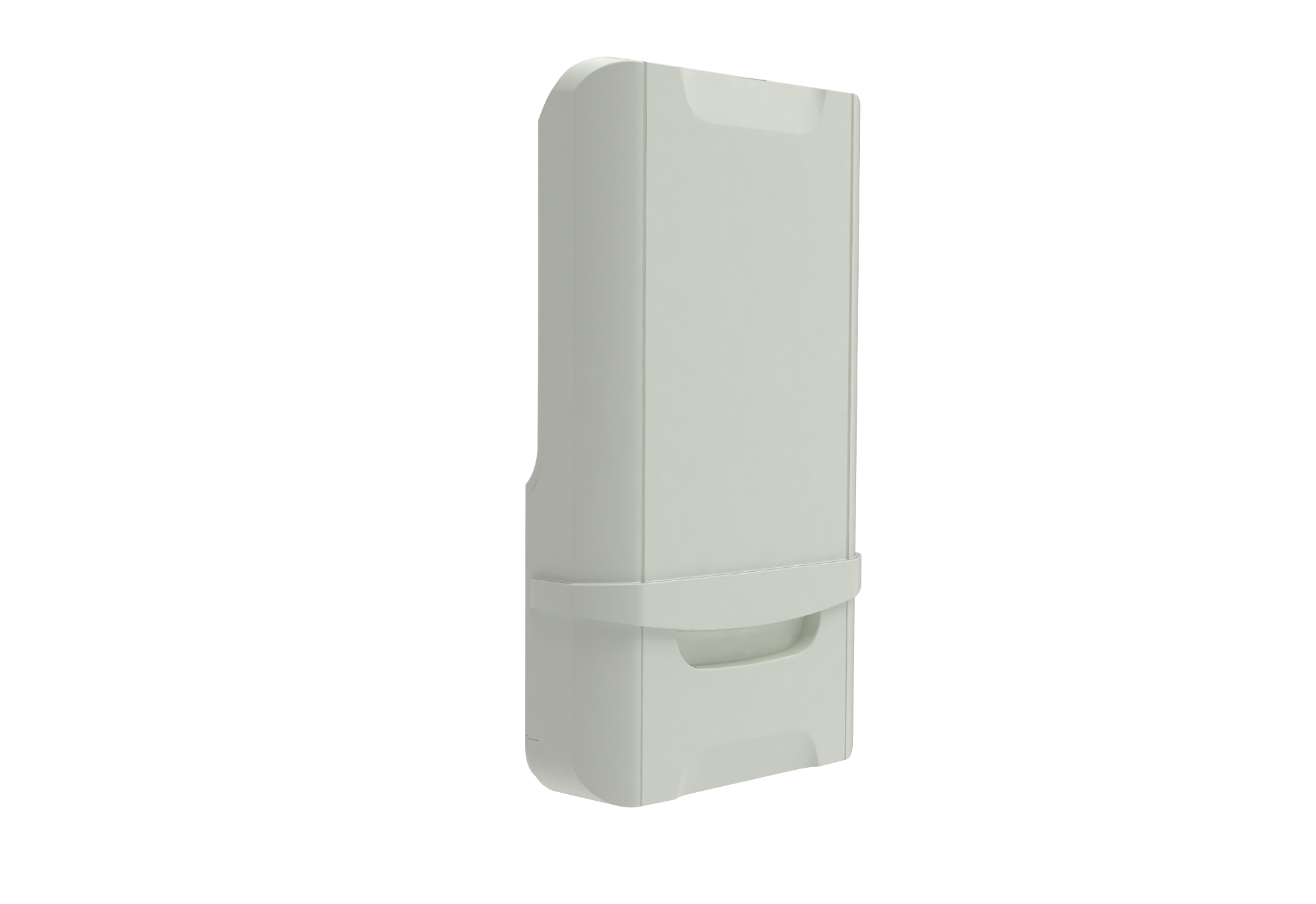

| Housing | ABS plastic material, white shell. | |
| Dimensions | 280mm * 164mm * 82mm | |

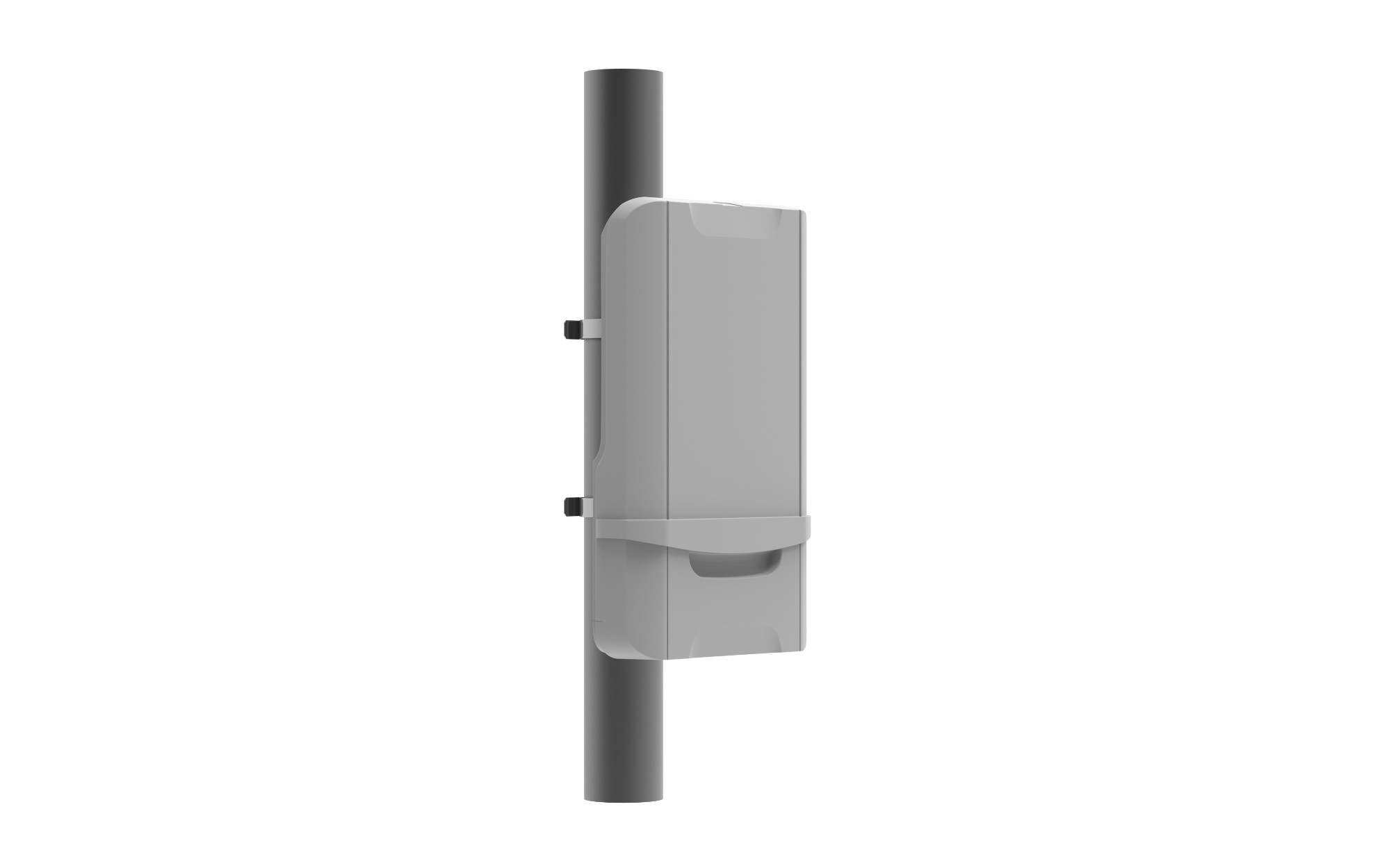

| Installations | Pole mounted. | |
| Weight | 1.5kgs | |
| Software features |
Networking Configuration |
Router and L3 Bridge Operation Support |
|
Built-in DHCP Server for LAN Devices |
||
|
IPv4 and IPv6 Support for LTE |
||
| Multiple PDN Interface Support | ||
|
Data Networking Features |
VPN Pass-through support (PPTP, L2TP & IPsec) | |
|
Built-in L2TP & GRE Tunneling Client Support |
||
|
DNS Proxy Support |
||
|
Firewall & Access Control |
||
|
DMZ and Virtual Server Support |
||
| IP and Port Forwarding Support | ||
|
Local and Remote Management Restriction |
||
|
Application Firewall Support |
||
|
NTP Service Support |
||
| Device Management |
CLI, Telnet, HTTP and HTTPS Management Interfaces |
|
|
Standard Based TR-069 Management |
||
|
FTP and HTTP OTA Firmware Upgrade |
||
|
USIM and PLMN Locking Support |
||
| Device Factory Default Setting | ||
